MIG and TIG welding robot for steel, stainless steel and alumium etc.
OEM Robot customers are more than welcome !
Item No.:
TR1006A-15MPayment:
FOB, CIF, EXWMarket price:
$11988Price:
$9100Price range:
10 - 20/$8995Product origin:
ChinaColor:
Blue/Green/WhiteShipping port:
ShenZhen portsLead Time:
20 days
TEL: +86-4000988557; Skype ID: gfreex@hotmail.com;
WeChat: Troysupply_com; QQ ID: 8936906.
Product introduction:

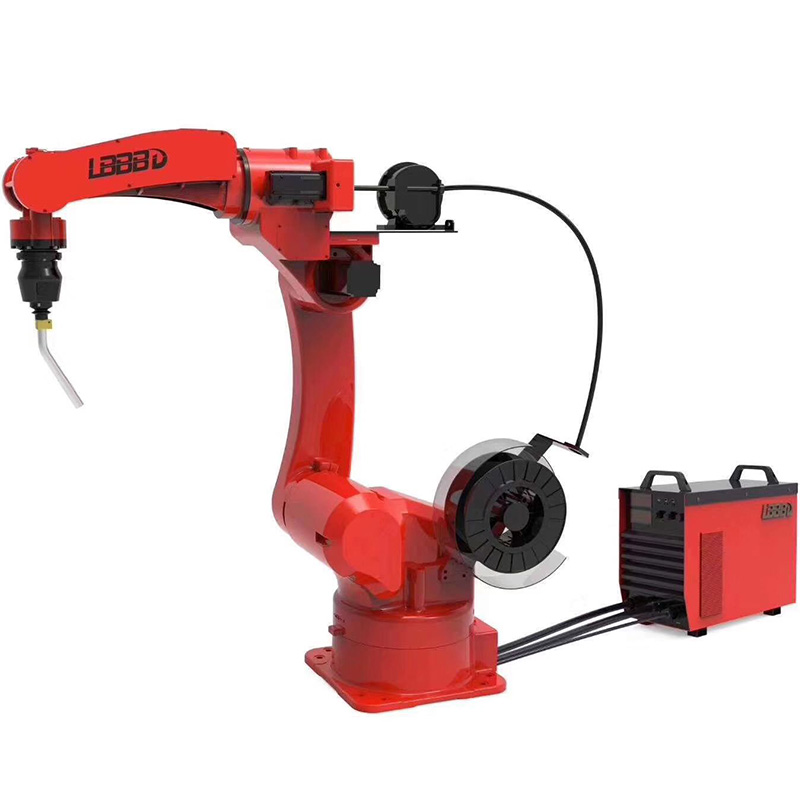

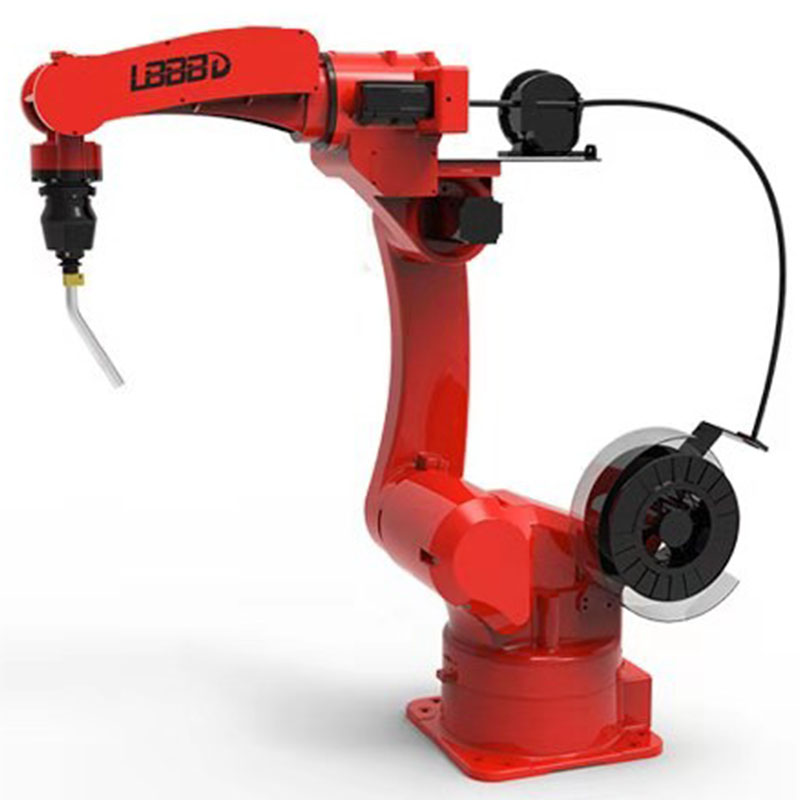

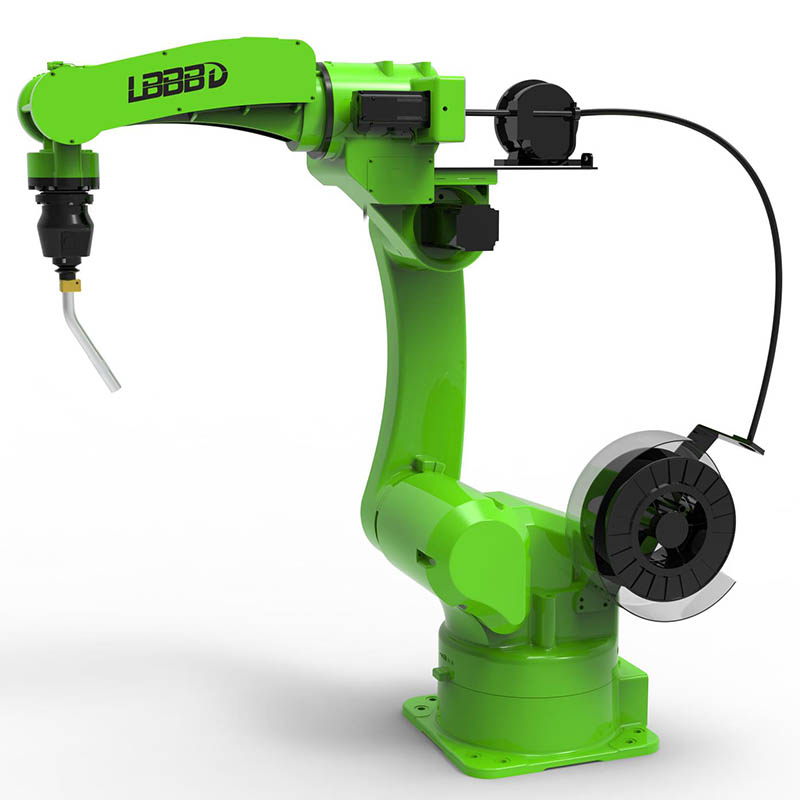

TR series welding industrial robots are compact in size, small in size and light in weight. They are dedicated arc welding robots that can achieve stable welding, obtain high-precision welding paths, shorten welding cycles, and extend the life of pipe fittings and cables. At the same time, the TR series welding robot can flexibly perform welding operations in a narrow space, and can easily choose floor installation, hanging installation, and inverted installation.

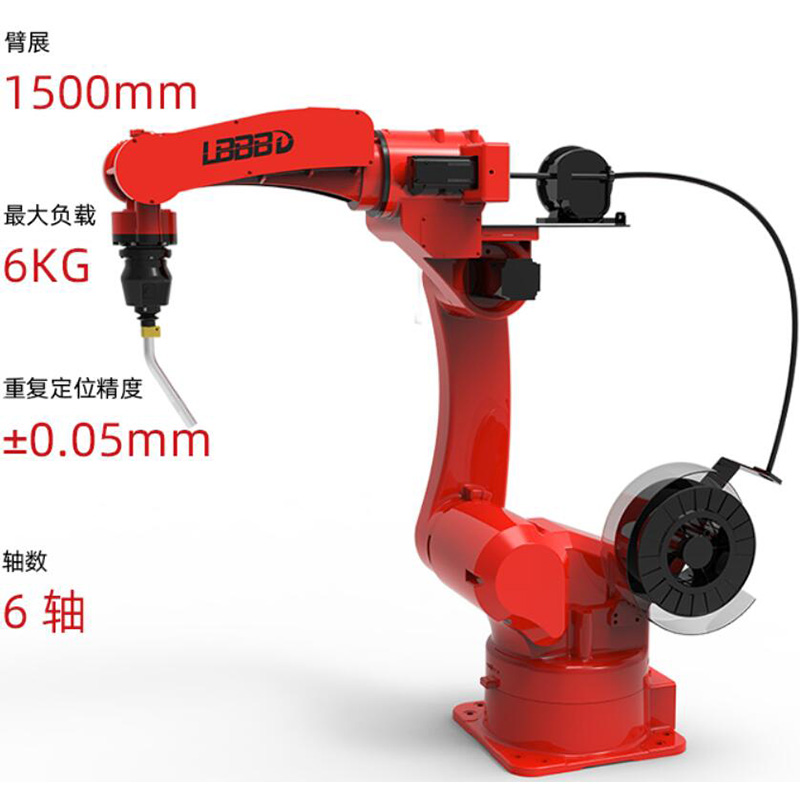

Robot characteristics: wrist load is 6Kg, maximum radius is 1500mm.
Features:
small volume
Light weight
Fast running speed
High repeat positioning accuracy
Strong welding stability

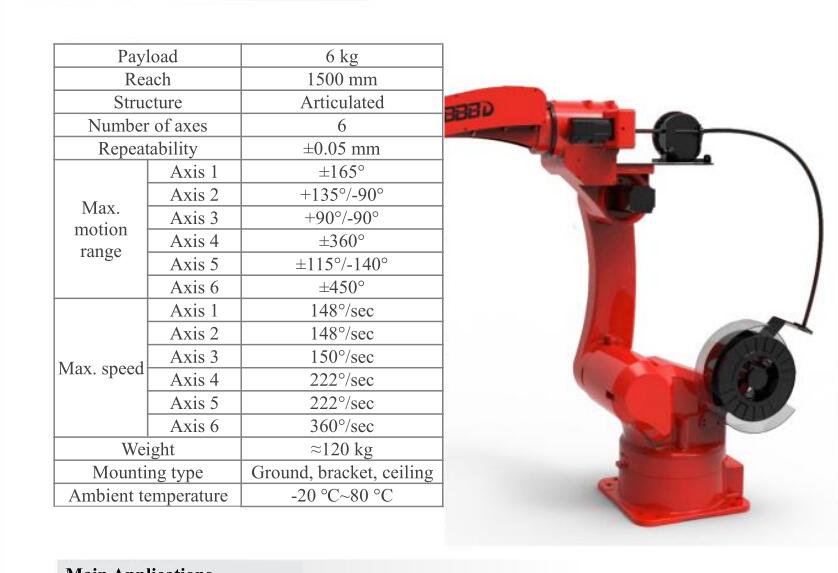

| Name | MIG-Welding robot |
| Type | 6 axis |
| Mode | TR1006A-15M |
| Use | Welding |
| Max payload | 6kg |
| Repeat accuracy | ±0.05mm |
| Power capacity | 1.7KVA |
| Body weight | 120kg |

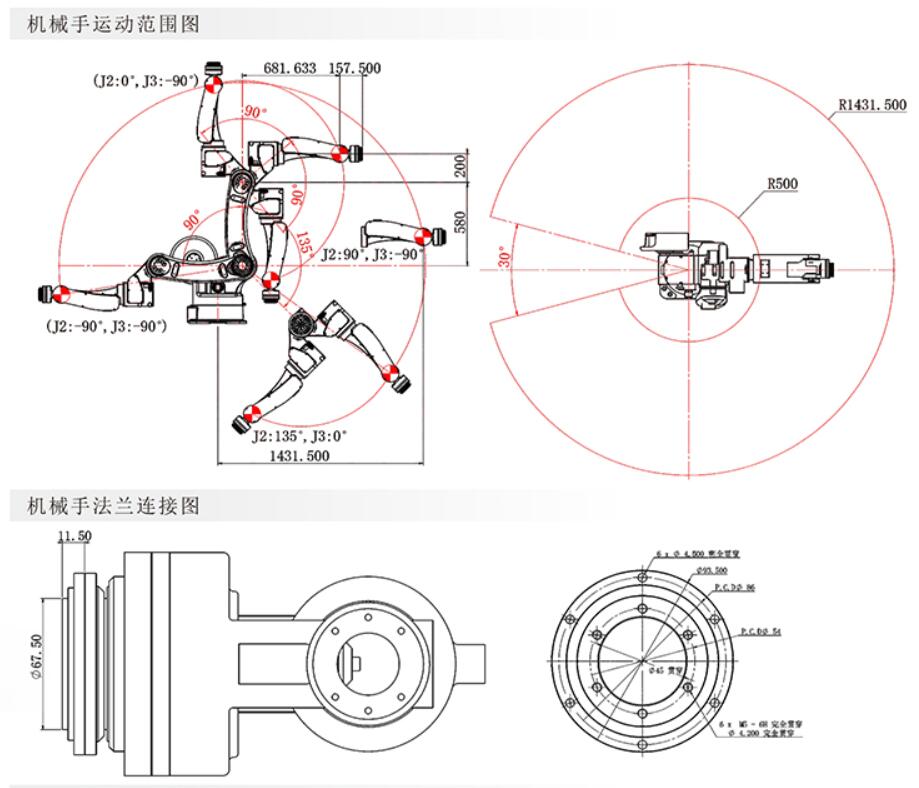

| Working range | See the diagram below |

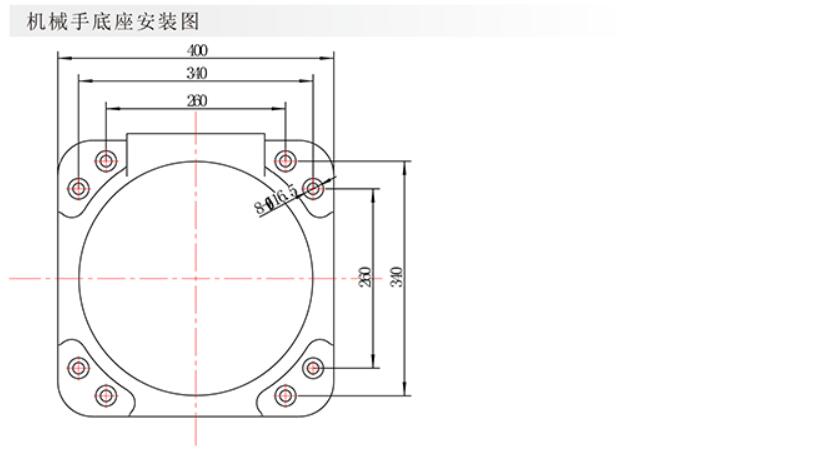

| Installation | Ground or Side mount |
|
Use of environmental temperature |
-20~80℃, |
| IP class | IP65 |
|
Working range |
|
| Base axis - J1 | ±165° |
| Base axis - J2 | +135° -90° |
| Base axis - J3 |
±90° |
| Arm axis - J4 | ±360° |
| Arm axis - J5 |
+115° -140° |
| Arm axis - J6 | ±450° |
|
Maximum Speed |
|
| Base axis - J1 | 148°/s |
| Base axis - J2 | 148°/s |
| Base axis - J3 | 150°/s |
| Arm axis - J4 | 222°/s |
| Arrn axis - J5 | 222°/s |
| Arm axis - J6 | 360°/s |
Leave a message
TIG welding robot is designed for thin metal sheet such as alumium or thin steel.
MIG and TIG welding robot for steel, stainless steel and alumium etc. Laser seems tracking system is available for this robot !
MIG/TIG welding robot can be worked as radius on 1850mm, suitable for chairs or furnitures welding !
