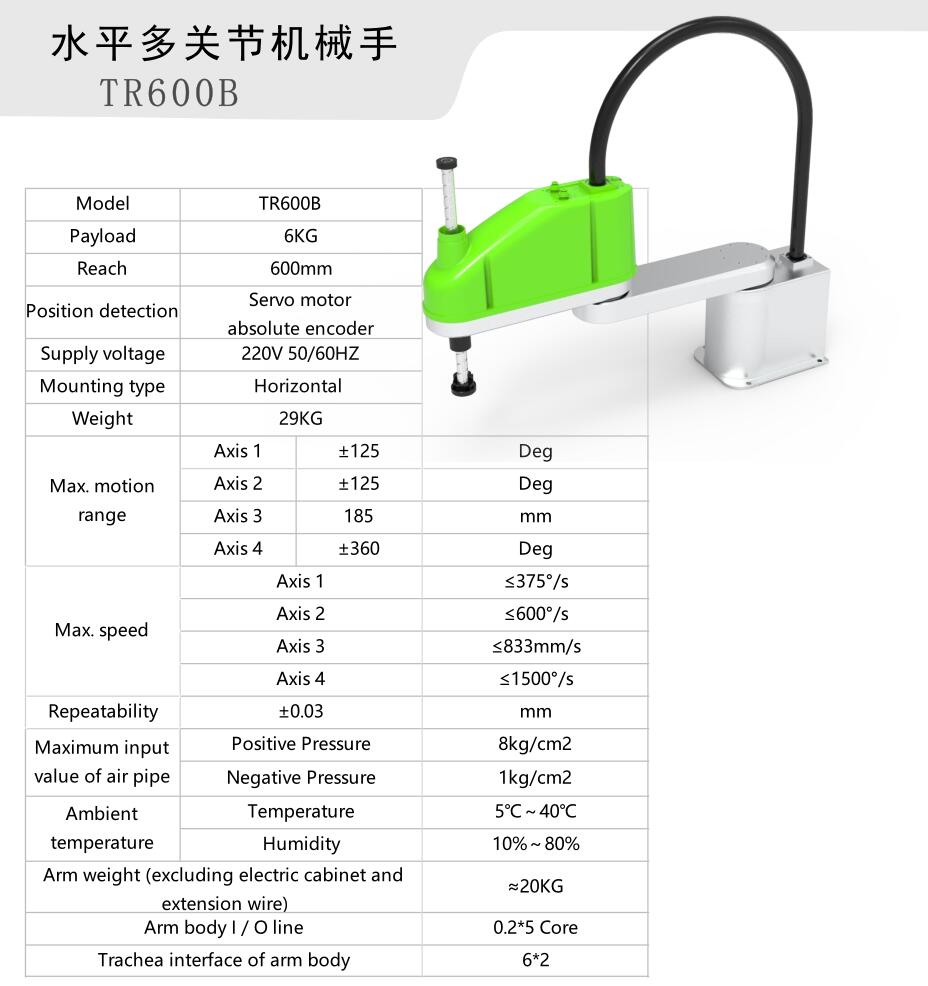

Item No.:
TR600BPayment:
FOBMarket price:
$6500Price:
$4355Price range:
10 - 20/$4190Product origin:
ChinaColor:
Green and whiteShipping port:
Shen ZhenLead Time:
15Min order:
10
TEL: +86-4000988557; Skype ID: gfreex@hotmail.com;
WeChat: Troysupply_com; QQ ID: 8936906.
Adapt to industrial occasions, capable of stable and long-term trouble-free operation;
Capable of mass production;
The price adapts to my country's national conditions and meets the cost accounting needs of enterprises;
This 4 axis scara robot is suitable for simple and repeated small load handling stations in enterprises, with high efficiency and cost savings;
Adopt high-performance controllers, which can control the robot to realize high-speed point motion, space linear interpolation motion, space arc interpolation and other functions;
Strong system expansibility, simple parameter configuration and easy maintenance;
Robot functional components based on high-performance processing chips ensure real-time control and scheduling of the system, and realize linkage and interpolation of multiple servo functional components;
The system interface is simple and generous, providing rich display and monitoring information;
The robot language command system is simple and easy to learn, and can meet most industrial needs.
Metal processing industry: blanking on punching machines, CNC loading and unloading, workpiece grinding, deburring;
Electronic products industry: assembly, IC chip testing and handling, spot welding, PCBA soldering, glue application, screwing, plug-in, workpiece polishing;
Automobile and motorcycle parts industry: handling, gluing, spot welding;
LCD/LED and glass industry: handling of glass plates, assembly of LCM modules, handling of silicon wafers and display screens;
Laser industry: spot welding, cutting;
Home appliance industry: assembly, handling and screwing of home appliance products;
Research areas: student teaching, school research and development.

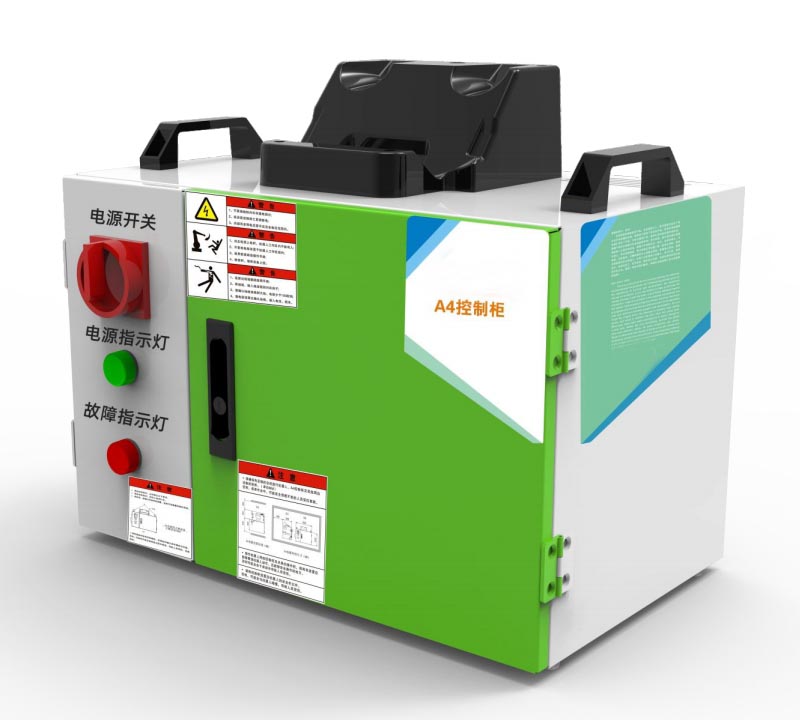

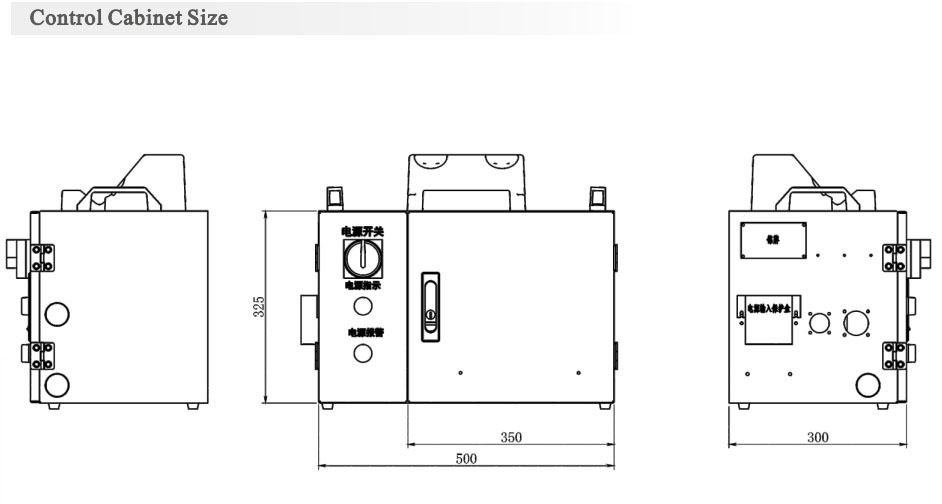

Scara Robot control cabinet Precautions:
1. The farthest operating distance between the teach pendant and the robot electric box.
The standard length of the teach pendant cable is 5M, and the standard cable of the robot and electric box is 3M.
2. The maximum distance between the robot and the electric box.
This length is the length of the equivalent line, usually the default length is 6 meters, other lengths can be customized.
Leave a message
ADTECH 4 axis SCARA robot arm with high performance and excellent precision.
Industrial robot manufacturer in China with cheap price ADTECH FR5215 system 5500mm arm length 4 axis hoisting scara robot with AVS vision system. ADTECH is professional in 4-axis Scara robot R&D, producing and service. For reduce products people cost. More and more robot is used on production line.ADTECH scara robot can replace NACHI,TOSHIBA,etc. Japan brand, It is application for PCBA assembly,screwing loading,packing,etc electrical field.
OEM Scara Robots are designed for the factory with electric components assembling such as Samsung, Foxconn, LG and Canon etc.
Features Easy operation Best configuration with high performance Long arm length suitable for wide places Max payload 10kgs Fast speed with 0.43S cycle time High precision up to ±0.015mm
Metal processing industry: blanking on punching machines, CNC loading and unloading, workpiece grinding, deburring; Electronic products industry: assembly, IC chip testing and handling, spot welding, PCBA soldering, glue application, screwing, plug-in, workpiece polishing; Automobile and motorcycle parts industry: handling, gluing, spot welding; LCD/LED and glass industry: handling of glass plates, assembly of LCM modules, handling of silicon wafers and display screens; Laser industry: spot welding, cutting; Home appliance industry: assembly, handling and screwing of home appliance products; Research areas: student teaching, school research and development.

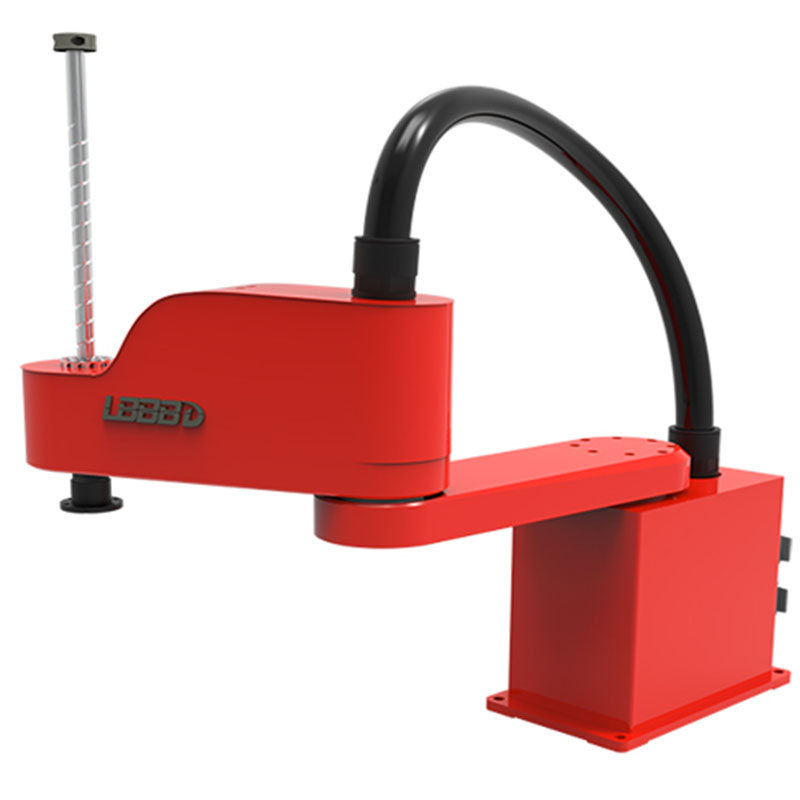

TR800B four axis SCARA industrial Robot: The robot is a multi-joint four-axis robot with complete independent property rights of LBD. It uses a high-performance controller to control the robot to achieve high-speed point motion, spatial linear interpolation motion, spatial arc interpolation and other functions. It is suitable for handling, loading and unloading. , Spot welding, gluing and other industrial occasions.
The SCARA multi-joint manipulator belongs to the company's high-precision, high-speed, and high-performance robots. This product is mainly aimed at the application of robot lock screws in the 3C industry. This product is developed based on the previously developed SCARA robot body with 600 arm lengths. A special non-standard robot for locking screws with visual positioning function.
Yaskawa Scara Robot SOC series: The MOTOMAN-SOC series is a SCARA robot specially built for high-speed operations. It is suitable for various scenarios such as assembly, transportation, packing, sorting, and inspection of small parts.
High speed and Reliable Delta Robots supply. It's build up with panasonic servos. Supports vision camera on production lines
4 axis Delta Robots/Spider Robots are suitable for food packaging industry. The robot vision system is availiable also !
4 axis delta robots are designed for food packaging in the production lines. such as chocolate, biscuit and bread factory makers.
Industrial Delta Spider Robot: 400mm-1200mm working diameter 1-3kg rated payload KEBA teach pendant
Industrial Delta Spider Robot: 400mm-1200mm working diameter 1-3kg rated payload KEBA teach pendant
* Delta robots are cost-effective, high-quality and low-cost, can be customized OEM design for customers, and support various visual sensor information; * TRD robot application system is mainly composed of three parts: robot, wire feeding and robot installation frame. The robot consists of a substrate, a motor cover, a rotating shaft, a main robot arm; it is composed of auxiliary mechanical arm and gripper center.
The DELTA robot is a classic parallel robot configuration. It has the characteristics of three-dimensional XYZ translation and rotation around the Z axis. It has the advantages of fast speed, good accuracy, high reliability, strong ease of use, and low maintenance cost. It is widely used in high-speed sorting and packaging fields.
*Product advantages: fast speed, high precision *Long service life and stable performance *Strong compatibility and strong flexibility *Simple control and ease of use
*Robot advantages: fast speed, high precision *Long service life and stable performance *Strong compatibility and strong flexibility *Simple control and ease of use
