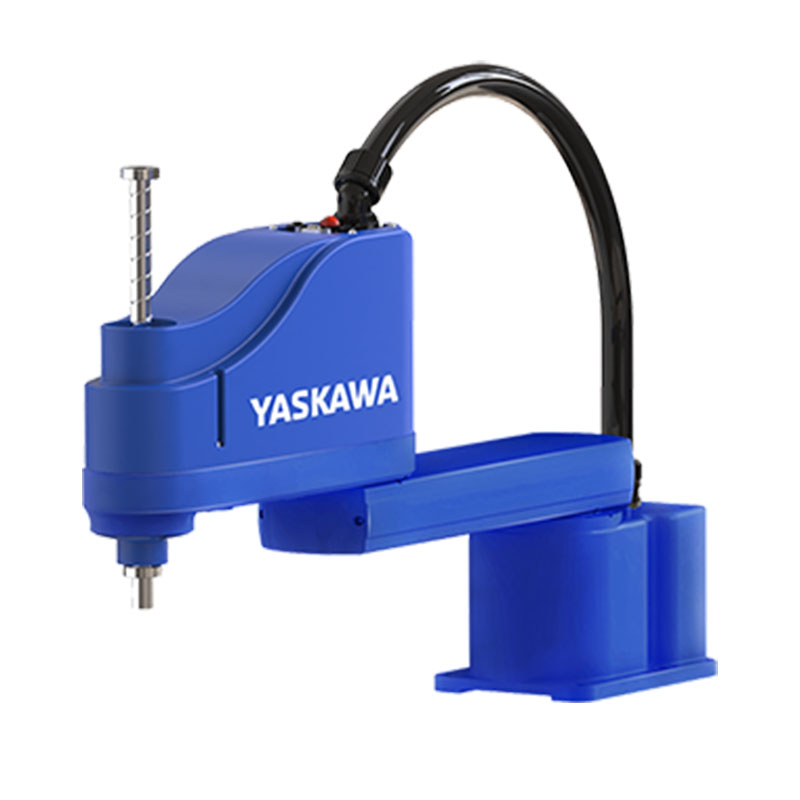

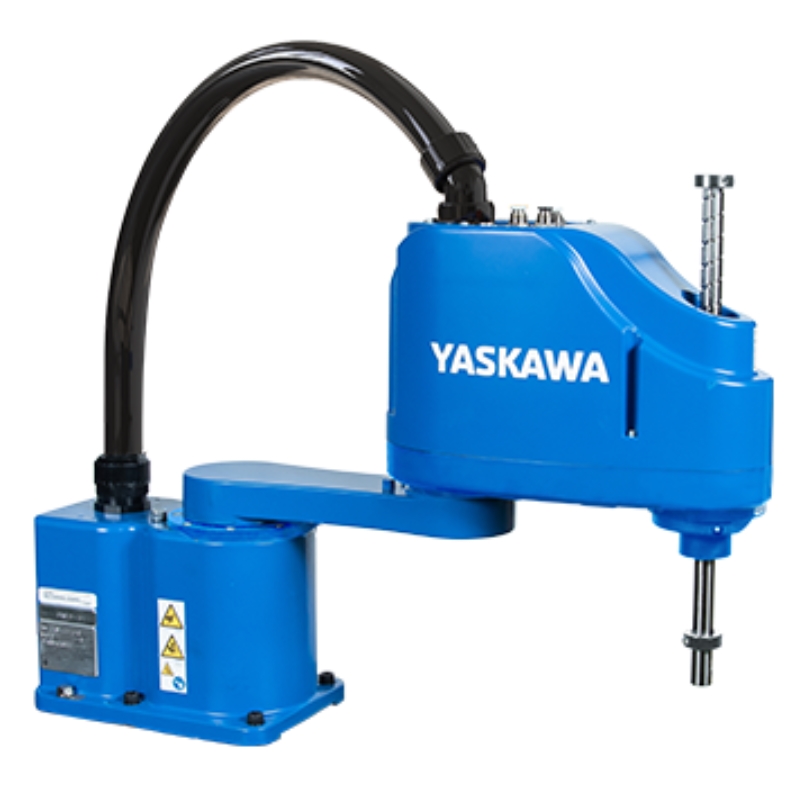

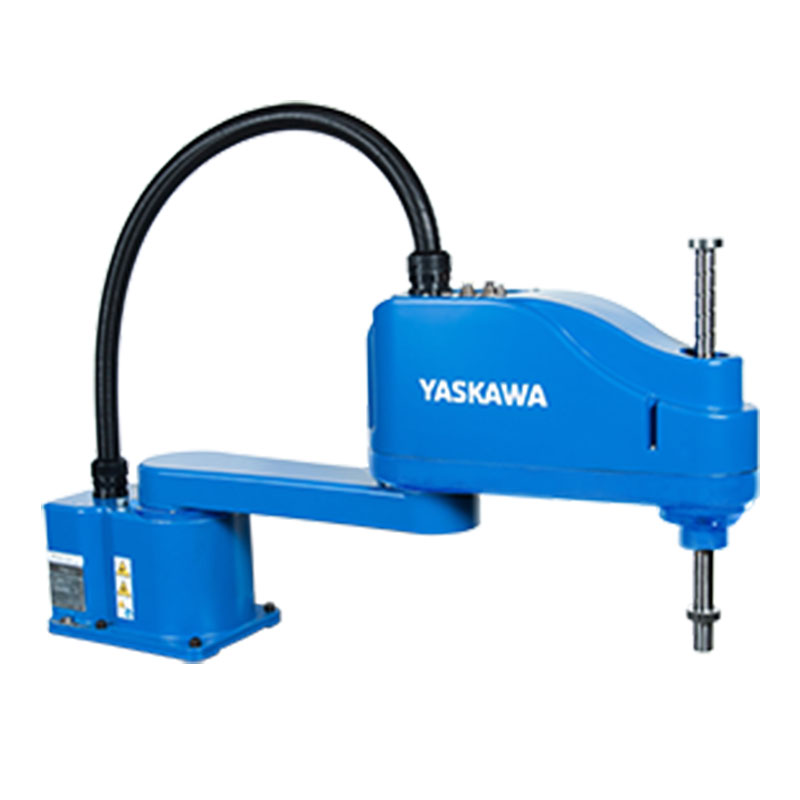

Yaskawa Scara Robot SOC series:
The MOTOMAN-SOC series is a SCARA robot specially built for high-speed operations.
Item No.:
SOC400Payment:
EXW, FOB, CIF.Product origin:
ChinaColor:
blueShipping port:
ShenZhenLead Time:
15
TEL: +86-4000988557; Skype ID: gfreex@hotmail.com;
WeChat: Troysupply_com; QQ ID: 8936906.
Yaskawa Scara Robot Product Features:
More Than Fast: Achieving the fastest standard cycle time of 0.32s, effectively improving production rhythm. Utilizing dedicated robot motors with a compact structure and powerful performance.
Precision and Efficiency: ±0.01mm and ±0.005° repeatability precision, ensuring high efficiency and stability Operates non-stop at high speeds 24/7, maintaining consistent efficiency.
High Inertia,More Stability: SR10 and SR20 feature a large allowable R-axis inertial torque, up to 1kg m2 meeting high load requirements. Particularly suitable for handling, loading/unloading, and assembly tasks in the lithium battery industry.
Detailed Arm Reach Segmentation, Precisely Matching Application Scenarios: Under the same load, various arm reach specifications are finely segmented. Multiple Z-axis strokes of 150mm, 200mm,400mm, and 420mm are available. This allows customers to fully utilize the internal space of the equipment, accurately matching application scenarios, and maximizing value creation.
Inverted SCARA, Breaking Spatial Constraints with Compactness: Considering space limitations and cost-effectiveness,it can partially replace parallel robots and inverted vertical multi-joint robots,enhancing efficiency in every inch of the production space. Suitable for sorting, tray loading, assembly, and inspection processes in industries like 3C and packaging
|
Yaskawa Scara Robot SOC series: |
|||||
|
NO. |
SOC3 |
SOC6 |
SOCR6-500P |
SOC10 |
SOC20 |
|
Payload |
3kg |
6kg |
6kg |
10kg |
20kg |
|
Working Radius |
400mm |
500mm |
500mm |
600mm |
800mm |
|
Repeat Accuracy |
±0.01mm/±0.005° |
±0.02mm/±0.005° |
±0.02mm/±0.005° |
±0.02mm/±0.01° |
±0.02mm/±0.01° |
|
Standard Cycle Time |
0.39s |
0.33s |
0.40s |
0.32s |
0.42s |
|
IP Class |
/ |
/ |
IP65 |
/ |
/ |
Leave a message
ADTECH 4 axis SCARA robot arm with high performance and excellent precision.
Industrial robot manufacturer in China with cheap price ADTECH FR5215 system 5500mm arm length 4 axis hoisting scara robot with AVS vision system. ADTECH is professional in 4-axis Scara robot R&D, producing and service. For reduce products people cost. More and more robot is used on production line.ADTECH scara robot can replace NACHI,TOSHIBA,etc. Japan brand, It is application for PCBA assembly,screwing loading,packing,etc electrical field.
OEM Scara Robots are designed for the factory with electric components assembling such as Samsung, Foxconn, LG and Canon etc.
Features Easy operation Best configuration with high performance Long arm length suitable for wide places Max payload 10kgs Fast speed with 0.43S cycle time High precision up to ±0.015mm
TR600B four axis SCARA industrial robot The robot is a multi-joint four-axis robot with complete independent property rights. It adopts a high-performance controller to control the robot to achieve high-speed point motion, spatial linear interpolation motion, spatial arc interpolation and other functions. It is suitable for transportation, Various industrial occasions such as loading and unloading, spot welding, gluing, etc.
Metal processing industry: blanking on punching machines, CNC loading and unloading, workpiece grinding, deburring; Electronic products industry: assembly, IC chip testing and handling, spot welding, PCBA soldering, glue application, screwing, plug-in, workpiece polishing; Automobile and motorcycle parts industry: handling, gluing, spot welding; LCD/LED and glass industry: handling of glass plates, assembly of LCM modules, handling of silicon wafers and display screens; Laser industry: spot welding, cutting; Home appliance industry: assembly, handling and screwing of home appliance products; Research areas: student teaching, school research and development.
TR800B four axis SCARA industrial Robot: The robot is a multi-joint four-axis robot with complete independent property rights of LBD. It uses a high-performance controller to control the robot to achieve high-speed point motion, spatial linear interpolation motion, spatial arc interpolation and other functions. It is suitable for handling, loading and unloading. , Spot welding, gluing and other industrial occasions.
The SCARA multi-joint manipulator belongs to the company's high-precision, high-speed, and high-performance robots. This product is mainly aimed at the application of robot lock screws in the 3C industry. This product is developed based on the previously developed SCARA robot body with 600 arm lengths. A special non-standard robot for locking screws with visual positioning function.
High speed and Reliable Delta Robots supply. It's build up with panasonic servos. Supports vision camera on production lines
4 axis Delta Robots/Spider Robots are suitable for food packaging industry. The robot vision system is availiable also !
4 axis delta robots are designed for food packaging in the production lines. such as chocolate, biscuit and bread factory makers.
Industrial Delta Spider Robot: 400mm-1200mm working diameter 1-3kg rated payload KEBA teach pendant
Industrial Delta Spider Robot: 400mm-1200mm working diameter 1-3kg rated payload KEBA teach pendant
* Delta robots are cost-effective, high-quality and low-cost, can be customized OEM design for customers, and support various visual sensor information; * TRD robot application system is mainly composed of three parts: robot, wire feeding and robot installation frame. The robot consists of a substrate, a motor cover, a rotating shaft, a main robot arm; it is composed of auxiliary mechanical arm and gripper center.
The DELTA robot is a classic parallel robot configuration. It has the characteristics of three-dimensional XYZ translation and rotation around the Z axis. It has the advantages of fast speed, good accuracy, high reliability, strong ease of use, and low maintenance cost. It is widely used in high-speed sorting and packaging fields.
*Product advantages: fast speed, high precision *Long service life and stable performance *Strong compatibility and strong flexibility *Simple control and ease of use
*Robot advantages: fast speed, high precision *Long service life and stable performance *Strong compatibility and strong flexibility *Simple control and ease of use
