Item No.:
TR1006A-185MPayment:
FOBProduct origin:
ChinaColor:
OrangeShipping port:
ShenZhen portsLead Time:
20 days
TEL: +86-4000988557; Skype ID: gfreex@hotmail.com;
WeChat: Troysupply_com; QQ ID: 8936906.
TR1006A-185M

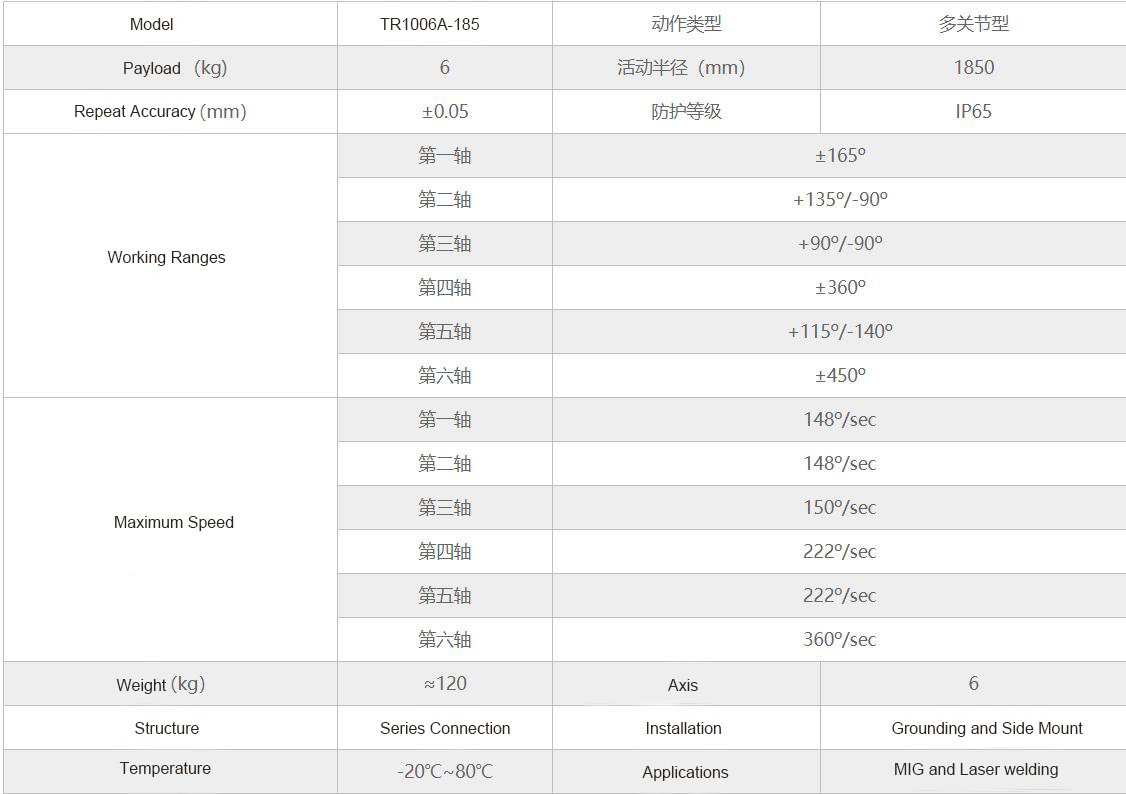

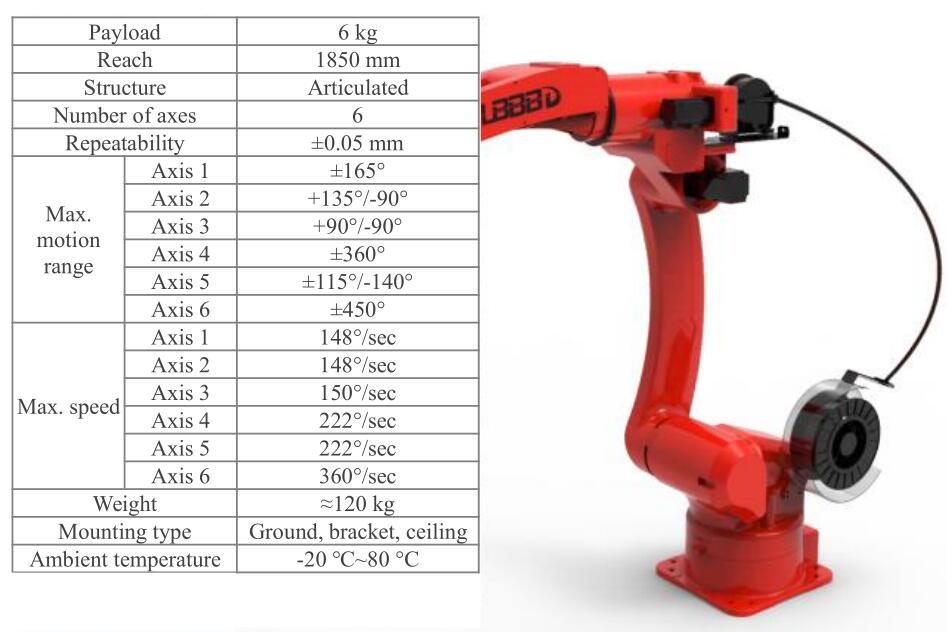

| Name | Welding robot |
| Type | 6 axis |
| Model | TR1006A-185M |
| Use | MIG Welding |
| Max payload | 6kg |
| Repeat accuracy | ±0.05mm |
| Power capacity | 3.7KVA |
| Body weight | 120kg |
| Working range | See below |
| Installation | Ground |
| Use of ambient temperature | -20-80℃, |
| IP class | IP65 |
|

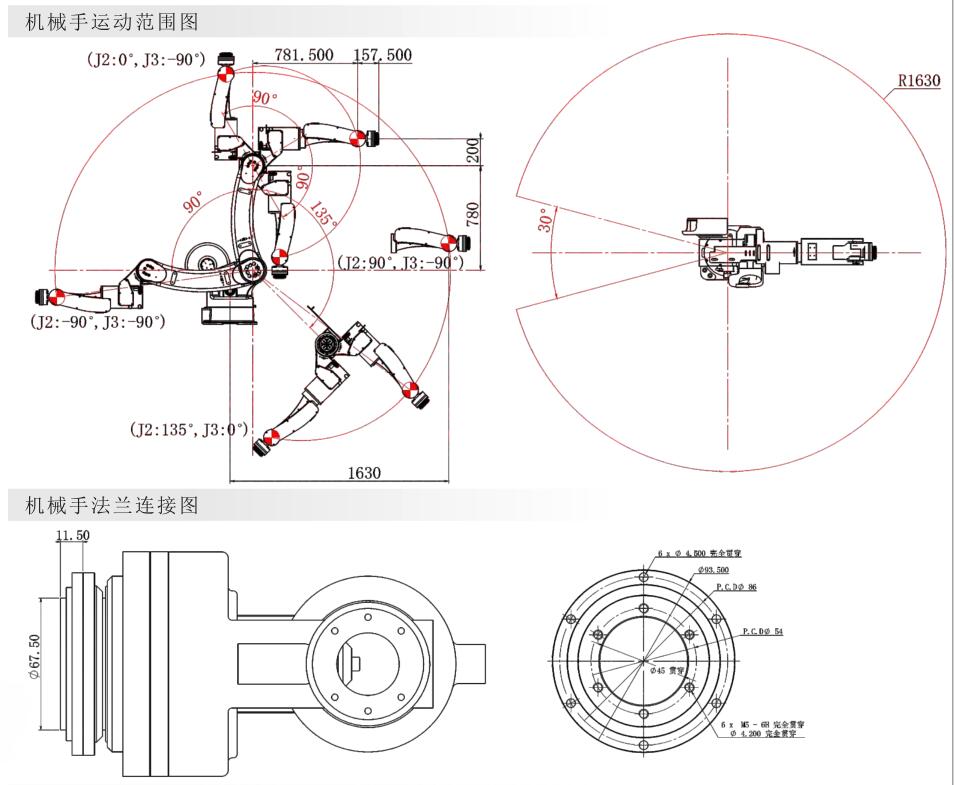

Working range |
|
| Base axis - J1 | ±165° |
| Base axis - J2 | +135° -90° |
| Base axis - J3 | ±90° |
| Arm axis - J4 | ±360° |
| Arm axis - J5 | +115° -140° |
| Arm axis - J6 | ±450° |
|
Maximum Speed |
|
| Base axis - J1 | 148°/s |
| Base axis - J2 | 148°/s |
| Base axis - J3 | 150°/s |
| Arm axis - J4 | 222°/s |
| Arm axis - J5 | 222°/s |
| Arm axis - J6 | 360°/s |
Leave a message
TIG welding robot is designed for thin metal sheet such as alumium or thin steel.
MIG and TIG welding robot for steel, stainless steel and alumium etc. Laser seems tracking system is available for this robot !
MIG and TIG welding robot for steel, stainless steel and alumium etc. OEM Robot customers are more than welcome !
MIG/TIG welding robot can be worked as radius on 1850mm, suitable for chairs or furnitures welding !
MIG welding robot for steel, stainless steel. Compatible with 1/2 axis Rotator table. Laser seems tracking system is available for this robot !
【Model】TR1006A-20MZ 【Action type】Multi-joint type 【Rated load】6kg 【Motion radius】2000mm 【Weight】170kg 【Number of axes】6 axes
【Model】TR1006A-15MZ 【Action type】Multi-joint type 【Rated load】6kg 【Motion radius】1500mm 【Weight】150kg 【Number of axes】6 axes
ADTECH 4 axis SCARA robot arm with high performance and excellent precision.
Industrial robot manufacturer in China with cheap price ADTECH FR5215 system 5500mm arm length 4 axis hoisting scara robot with AVS vision system. ADTECH is professional in 4-axis Scara robot R&D, producing and service. For reduce products people cost. More and more robot is used on production line.ADTECH scara robot can replace NACHI,TOSHIBA,etc. Japan brand, It is application for PCBA assembly,screwing loading,packing,etc electrical field.
OEM Scara Robots are designed for the factory with electric components assembling such as Samsung, Foxconn, LG and Canon etc.
Features Easy operation Best configuration with high performance Long arm length suitable for wide places Max payload 10kgs Fast speed with 0.43S cycle time High precision up to ±0.015mm
TR600B four axis SCARA industrial robot The robot is a multi-joint four-axis robot with complete independent property rights. It adopts a high-performance controller to control the robot to achieve high-speed point motion, spatial linear interpolation motion, spatial arc interpolation and other functions. It is suitable for transportation, Various industrial occasions such as loading and unloading, spot welding, gluing, etc.
Metal processing industry: blanking on punching machines, CNC loading and unloading, workpiece grinding, deburring; Electronic products industry: assembly, IC chip testing and handling, spot welding, PCBA soldering, glue application, screwing, plug-in, workpiece polishing; Automobile and motorcycle parts industry: handling, gluing, spot welding; LCD/LED and glass industry: handling of glass plates, assembly of LCM modules, handling of silicon wafers and display screens; Laser industry: spot welding, cutting; Home appliance industry: assembly, handling and screwing of home appliance products; Research areas: student teaching, school research and development.
TR800B four axis SCARA industrial Robot: The robot is a multi-joint four-axis robot with complete independent property rights of LBD. It uses a high-performance controller to control the robot to achieve high-speed point motion, spatial linear interpolation motion, spatial arc interpolation and other functions. It is suitable for handling, loading and unloading. , Spot welding, gluing and other industrial occasions.
The SCARA multi-joint manipulator belongs to the company's high-precision, high-speed, and high-performance robots. This product is mainly aimed at the application of robot lock screws in the 3C industry. This product is developed based on the previously developed SCARA robot body with 600 arm lengths. A special non-standard robot for locking screws with visual positioning function.
Yaskawa Scara Robot SOC series: The MOTOMAN-SOC series is a SCARA robot specially built for high-speed operations. It is suitable for various scenarios such as assembly, transportation, packing, sorting, and inspection of small parts.
