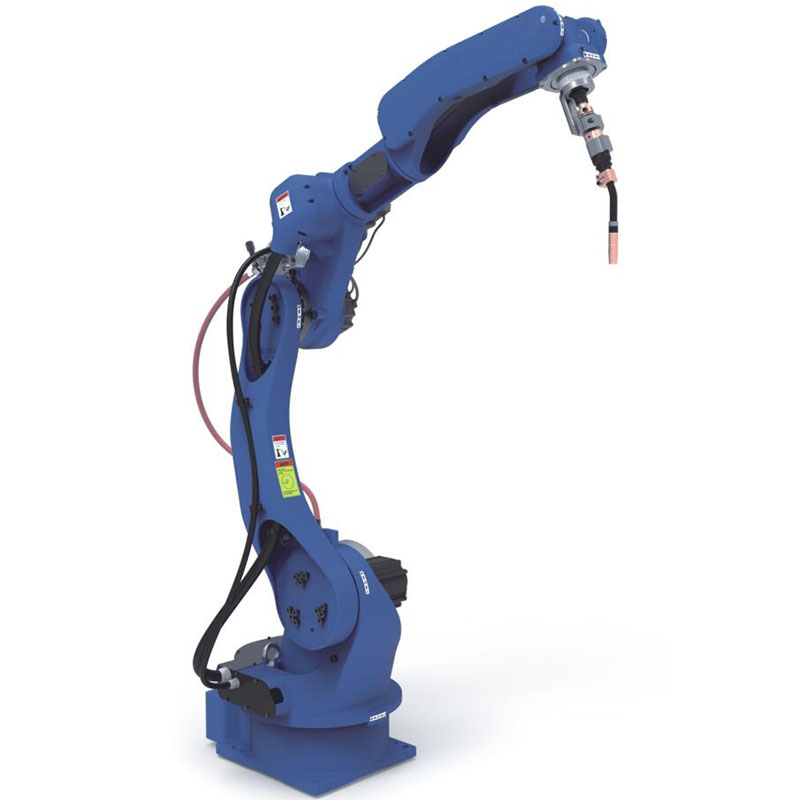

MIG welding robot for steel, stainless steel.
Compatible with 1/2 axis Rotator table.
Laser seems tracking system is available for this robot !

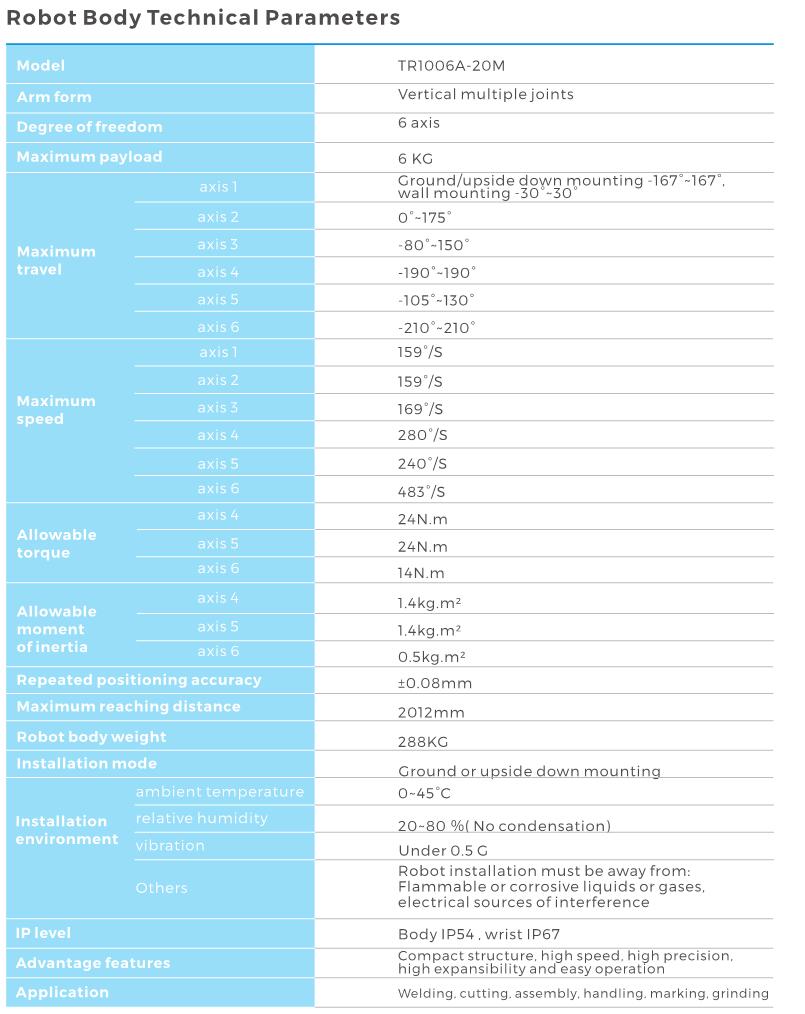

Item No.:
TR1006A-20MPayment:
FOBProduct origin:
ChinaColor:
BlueShipping port:
ShenZhen portsLead Time:
15 days
TEL: +86-4000988557;
Teams: gfreex@hotmail.com;
WeChat: Troysupply_com;
QQ ID: 8936906.
Welding Robot Features:

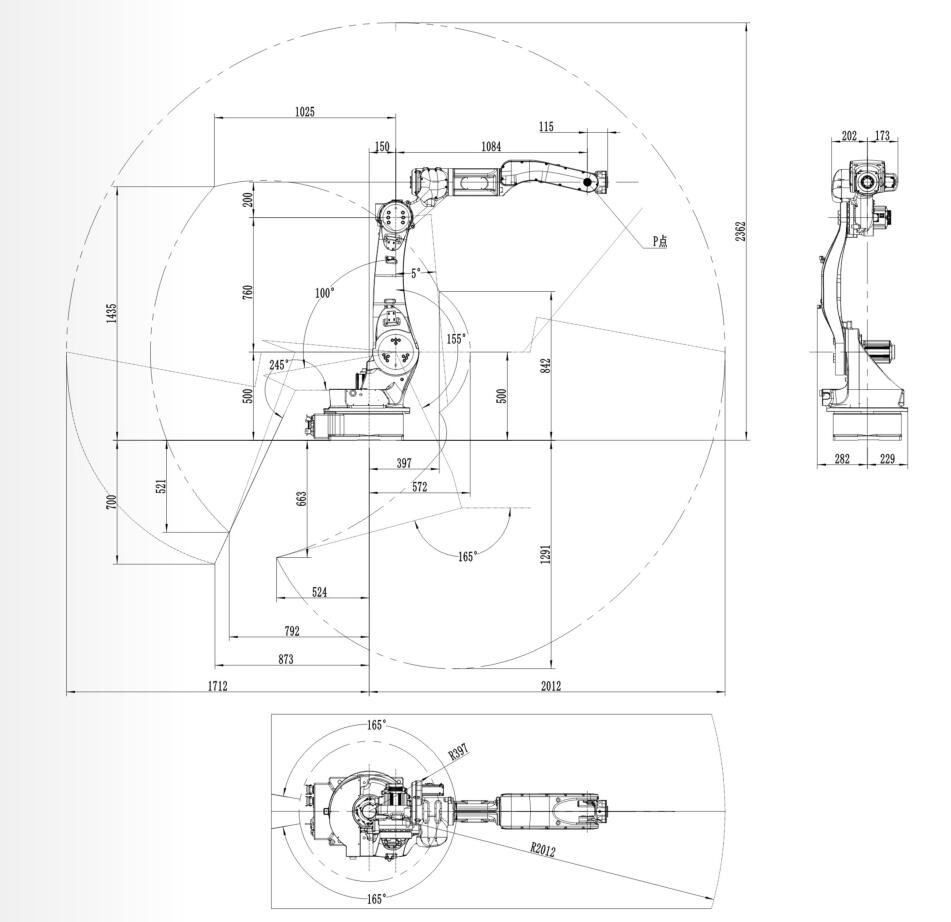

With compact design 6kg payload and about 2.0 meters arm span, it can be installed on the ground or upside down flexibly.
· With large working space and fast running speed, it is suitable for welding, spraying,loading and unloading, handling, sorting, assembling and other applications.
· The safety emergency stop board is independent of the controller, and the safety relay circuit is adopted to provide double circuit emergency stop to ensure the reliability of emergency stop.
· The robot body cables are made of special cables for highly flexible robots.
· Built-in three-phase transformer, 380V and 200V isolation, more stable power supply.
· Power supply requirements can be customized for different countries. Built in three-phase filter can effectively improve the performance of EMC and EMI.
· The robot body is with dual-circuit gas pipe and meets welding and handling requirements.
