Product Overview:
With the rapid development of the drone industry, the cost has continued to decrease, and it has been widely used in industry and civilians. At the same time, disorderly flight has continued to occur, especially in some major activities, drones randomly enter the protection area and start collecting video images Transformed into a new type of illegal activity tools. It poses huge risks to security work, public privacy, and social security. Cases in which drones disrupt social public order are common in news reports at home and abroad. The drone countermeasure equipment effectively fills in the gaps in the management and control of drones, can effectively control drones with hidden safety hazards, guarantee the smooth progress of various major businesses and activities, and protect the public interest.

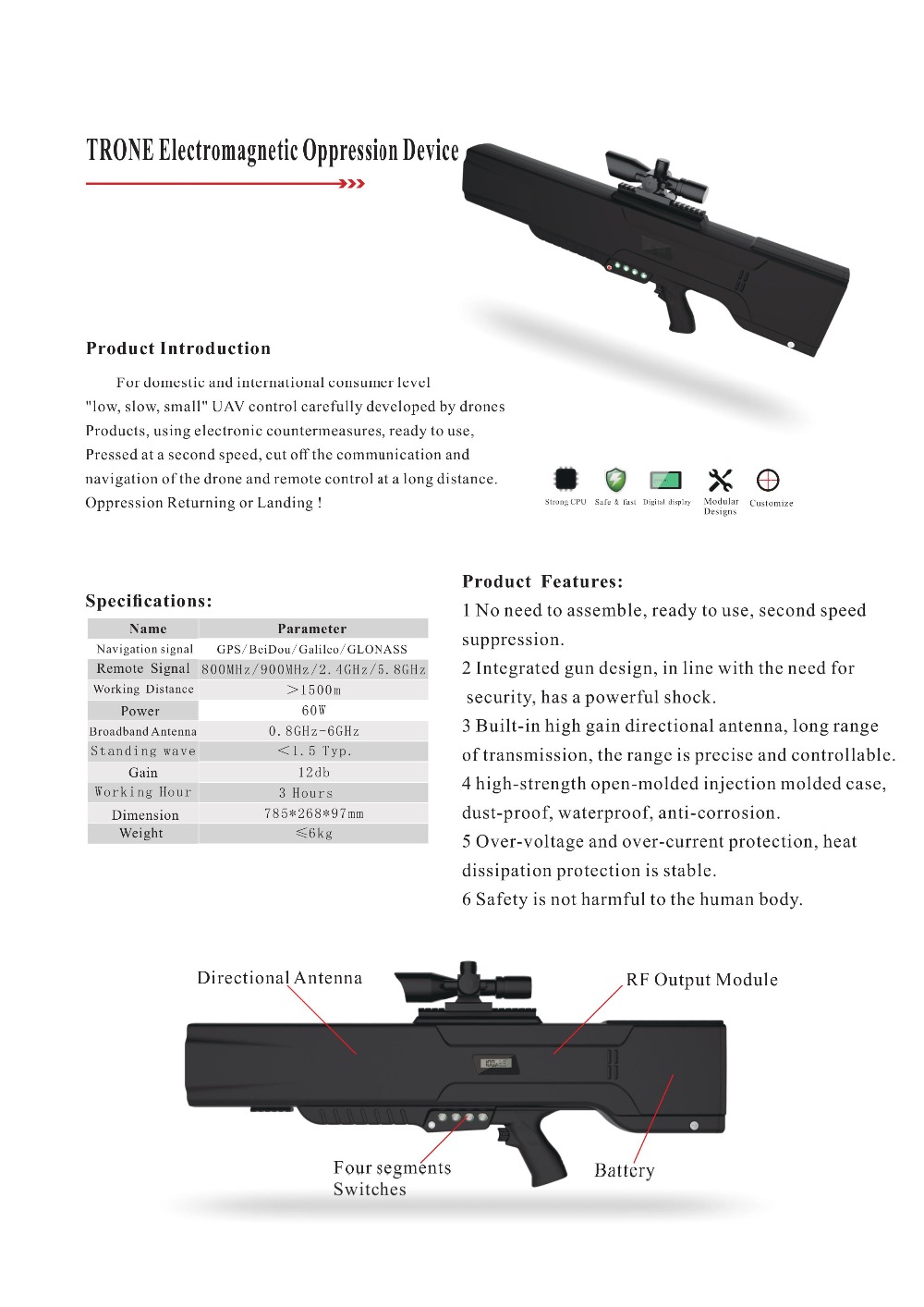

Product introduction:
"Spirit I type UAV countermeasures equipment" is carefully developed for the actual situation of domestic and foreign drones. It adopts electronic countermeasures, which is ready to use, presses in seconds, and cuts off the communication and navigation between the drone and the remote control. , Drove or forced landing of the drone.
Product features:
Appearance: Designed with integrated cooling and single soldier, which meets the needs and has a strong deterrent;
Use: portable, ready to use without assembly;
Effective distance: 1500 meters; solution optimization, strong and stable output, risk control in seconds;
Antenna: Ultra-wideband high-gain directional antenna with low backward radiation;
Multi-band: 0.8GHz; 0.9GHz, 1.2GHz, 1.5GHz, 2.4GHz, 5.8GHz
Temperature control system: Built-in temperature control cooling system to ensure long-term stable operation;
Removable battery: 24V continuous working for 3 hours;
Safety: no harm to human body;
High-strength plastic shell, dustproof and waterproof.

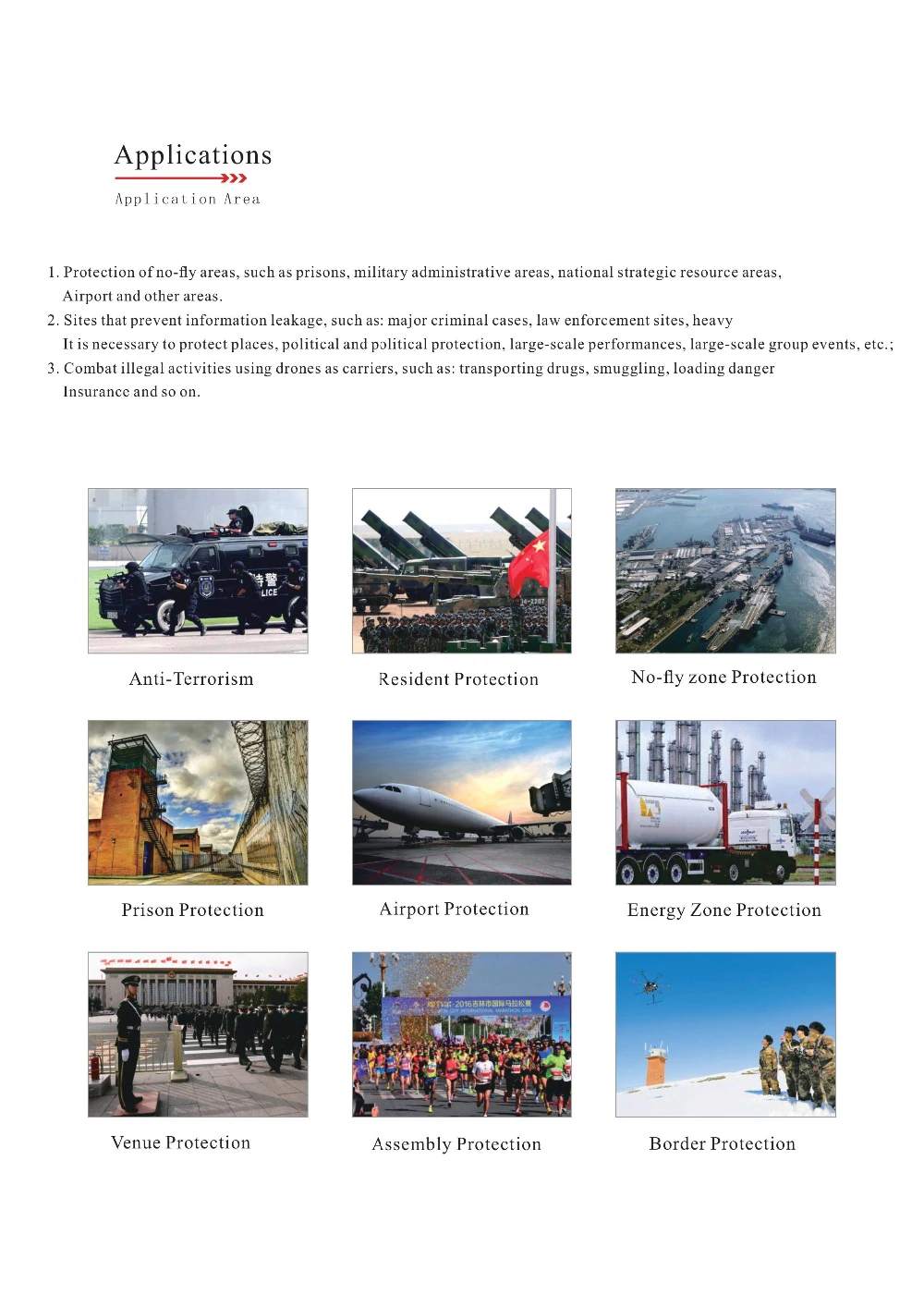

Product application:
1. Protection of no-fly areas, such as prisons, management areas, resource areas, airports, etc.
2. Sites to prevent information leakage, such as: major criminal scenes, important security sites, escorts for dignitaries, large-scale performances, large-scale group incidents, etc .;
3. Crack down on illegal activities using drones as carriers, such as drug trafficking, smuggling, and loading of dangerous goods.

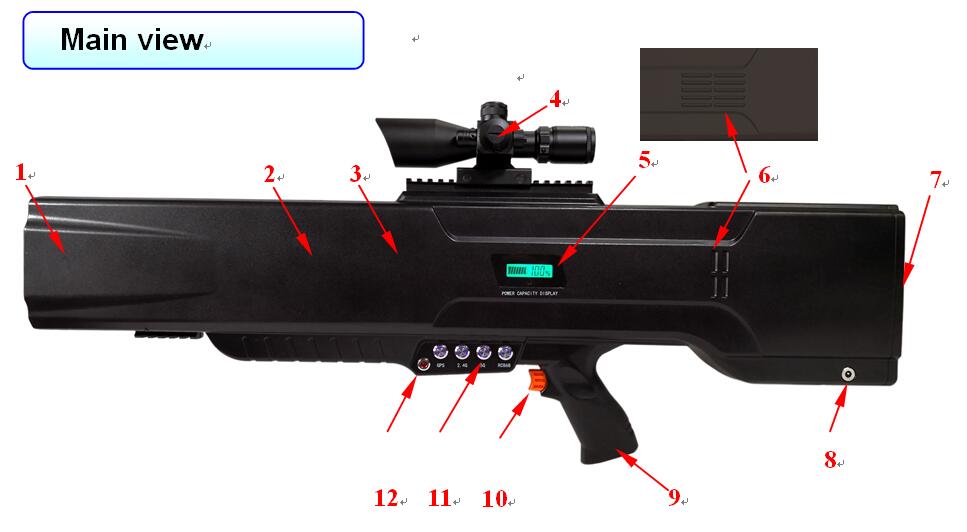

No. |
Function |
Remarks |
1 |
ABS Gun Shell |
Build-in 12dbi gain 4-In-One Directional antenna |
2 |
Antenna Combiner |
Build-in antenna combiner control |
3 |
Jammer Module |
Build-in 4pc drone signal jammer module |
4 |
sighting device |
4x |
5 |
Battery Capacity LCD |
Battery capacity LCD display of Current and percentage |
6 |
Cooling Hole |
Cooling Hole |
7 |
Battery Cover |
Open the cover to change the new or full charge battery |
8 |
Charger In Port |
DC24V 2-5A charger input |
9 |
Hand Grip |
Handheld easily |
10 |
trigger |
Power Switcher to turn on or turn off devices |
11 |
Band Switch |
Turn ON or OFF power of each band with LED pilot light |
12 |
Power LED Pilot Light |
When turn ON power switch,The device on working ,it will on light . |
Output Port |
Frequencies |
Average Output Power |
RC2.4G |
2400-2500MHz |
20Watt |
RC 5.8G |
5725-5850MHz |
20Watt |
GPSL1+Glonass+BD |
1560-1616MHz |
10Watt |
GPSL2+L5 |
1170-1280MHz |
10Watt |
Power supply: AC adapter 50 to 60Hz, (AC110 or 240V-DC24V) Build-in battery: 24V10Ah Working Time:1.5Hours |
||
Dimension: (length,width, height ) 783*270(with Rifle Scope 340)*97mm |
||
Package Size: 920x 430 x 160mm N.W:5.5kg G.W:15.5kg |
||
Total Power:60W
Shielding Radius: (200-1000) meters@-75dBm. |
|
Output
power total 50w, Build-in 4-In-One High gain 12dbi directional antenna,
shielding 200-1000m,Still depends on the strength signal in given area.
Each unit can jam up to 4 frequency bands simultaneously, each frequency band is separate and with power switch to ON or Off, LED indicator lights display power supply
100% safe VSWR over protection for each modular
Built-in Battery, Operating Time more than 60-90 Minutes,
Battery Power and charger status & working Current display via LED screen.
Battery easily exchange design
Equip with quadruple telescope to find and shield the drone far away.

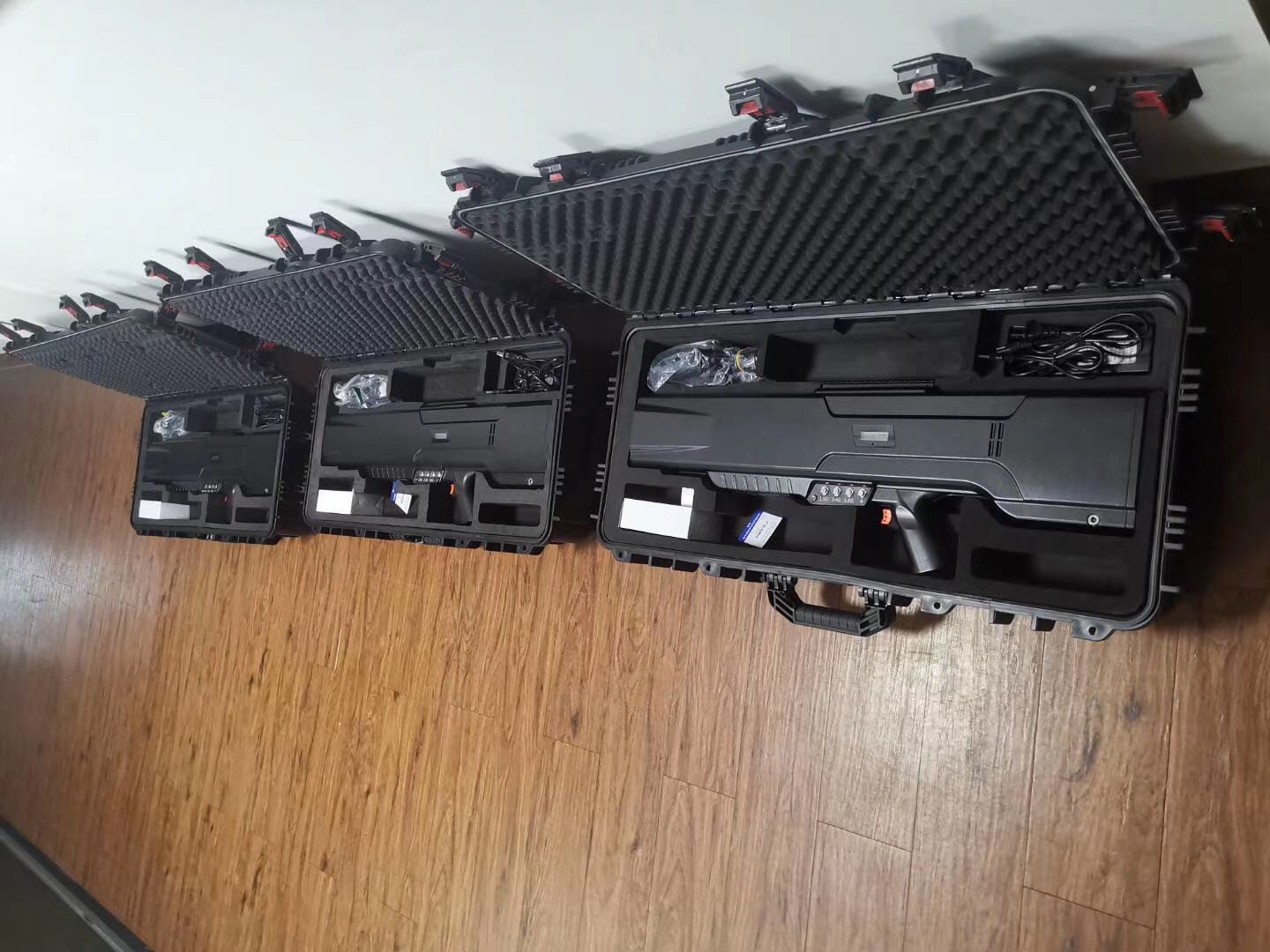

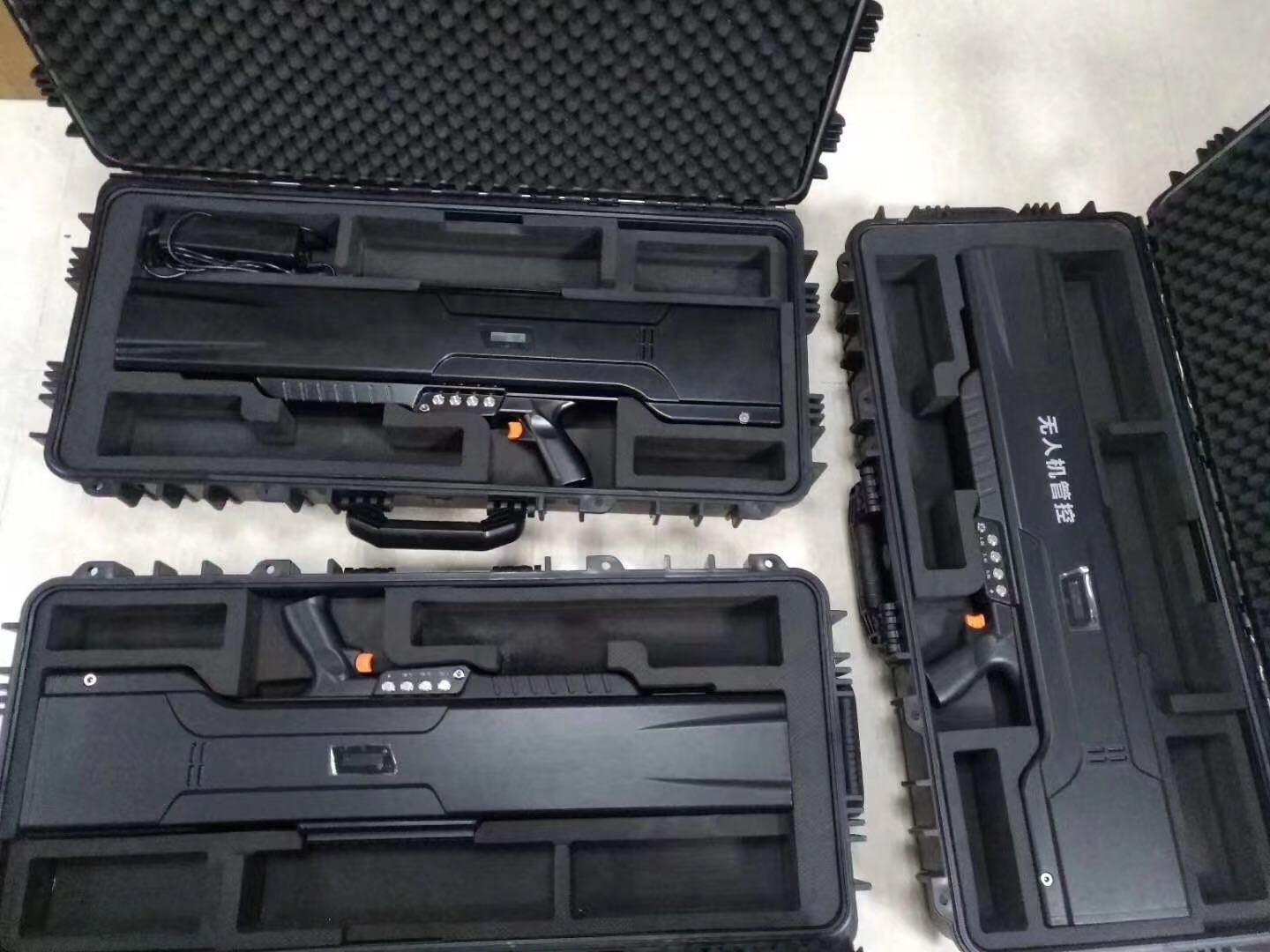

Portable safe case to pack devices for portable
Turning on your jammer:
1: Please make sure had charger full the battery at first
2: Please choose which band you want to block, Press switch to turn ON
3: keep on press the trigger (Power switch) when you are jamming. Power LED pilot light on working. The Battery LCD display will be green and display the percentage of capacity.
|
1: Loosen the trigger (Power switch) the device power turn OFF.
2: Press switch to turn OFF any band you don’t need
Notice:
◎ Before linking all the antenna, power supply shall not be switched on at first. Non taking off antenna when the mainframe is in the working condition.
◎ The jammer shall be installed in the position with good ventilation. And large-scale things shall be avoided to ensure to the shielding effect.
◎ When use the jammer outdoors, preventing water shall be taken into consideration.
